Laser Cut Exhaust Hose Wooden Filter Design

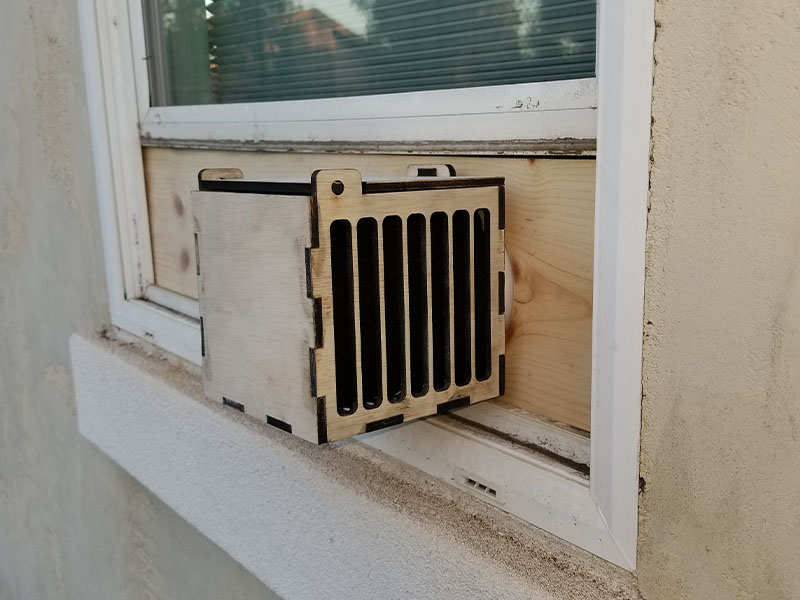

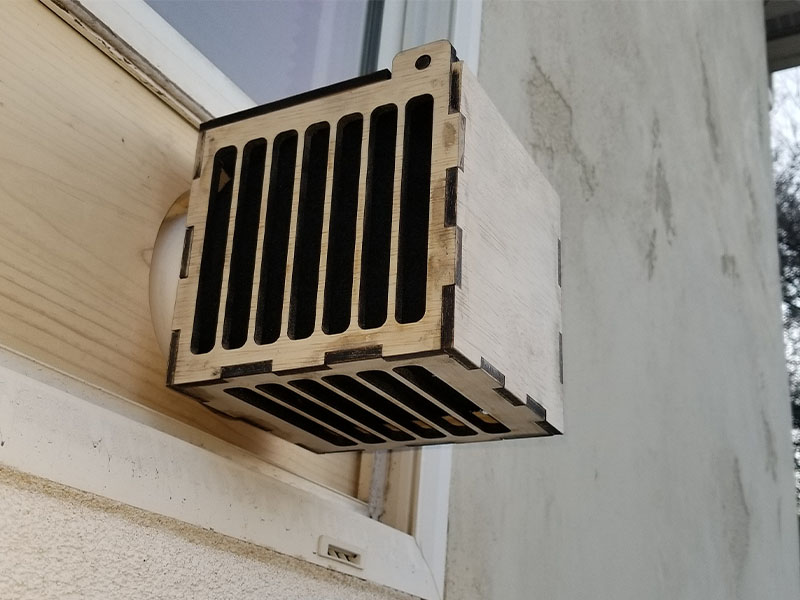

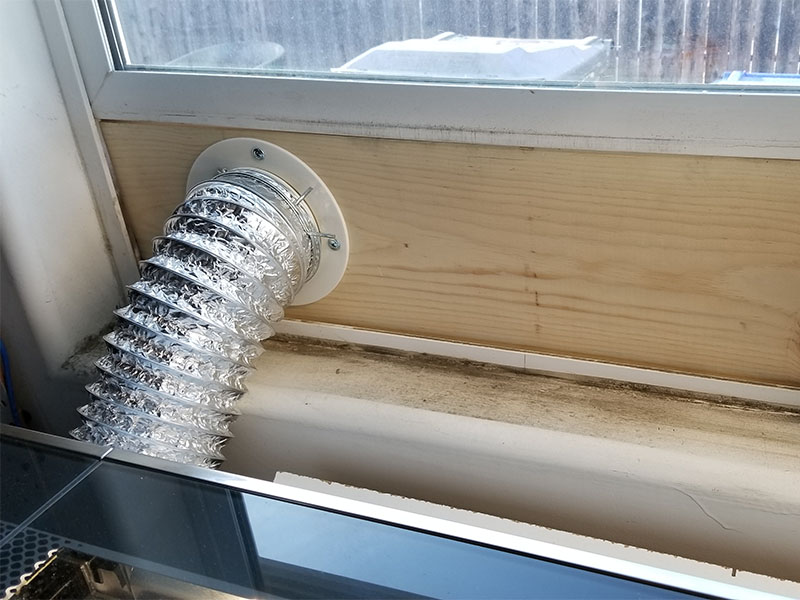

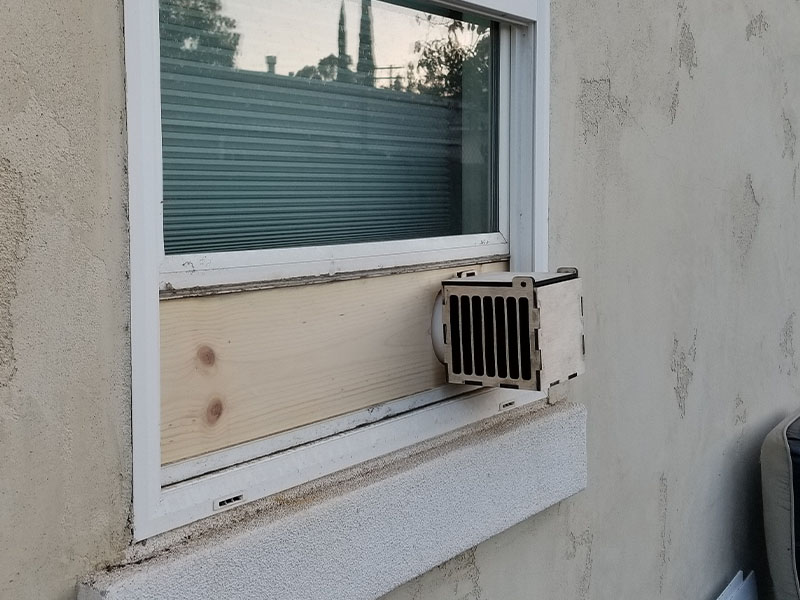

This DIY wooden exhaust port cover is designed for portable air conditioning units or any laser cutter exhaust system, providing a practical and efficient way to expel hot air outside through a window. Crafted with precision, this cover ensures a secure and sealed opening in your window sash, making it a useful addition for maintaining a comfortable indoor environment.
Key features and purpose:
Sealing: The wooden panel fits snugly within the window frame to prevent outside warm air, dust, dirt, and insects from entering the room.
Efficiency: By providing a dedicated, sealed exit point for hot exhaust, it improves the air conditioner’s efficiency and cooling capacity, reducing energy consumption.
Custom Fit: Unlike universal kits, this appears to be a homemade or laser-cut piece specifically measured for this window opening and the hose diameter, often crafted from materials like plywood or acrylic.
This exhaust file is avail in CDR, DXF and SVG File formats, you can resize the drawing as per your requirements or need.

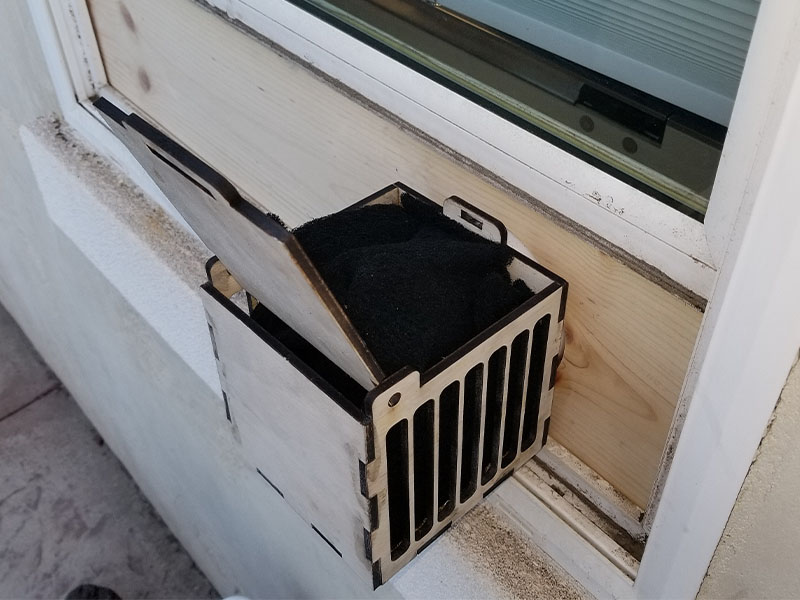

To improve air quality, you can experiment with additional filters. For instance, a piece of a vacuum cleaner bag with a HEPA filter can be cut and taped inside the cover to help reduce dust, smoke, or other airborne particles.
I hope you all enjoy it. You can also try using different materials to improve the filtering. and clean the room environment
| Link | Format | Extension | File Size |
DXF Format |
.dxf | 253.2 KB |
SVG Format |
.svg | 20.9 KB |
CDR Format |
.cdr | 30.5 KB |
